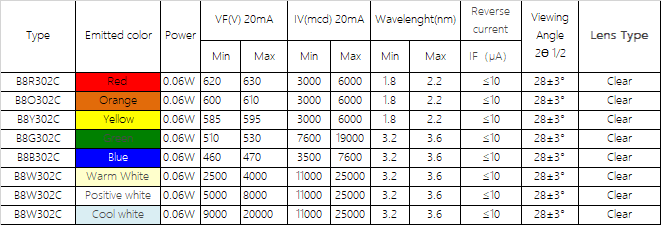

Product number::Absolute Maximum Rating(At TA=25°C)
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
product properties:
Using epistar chip, hightemperature resistant Japanese glue, 99.99% pure gold wire welding;
Colloid color: can becustomized according to requirements: colored fog, colorless fog, colored andtransparent, colorless and transparent
Luminous color: can becustomized according to requirements: white, red, orange, yellow, ordinarygreen, emerald green, blue, two colors
Light emitting angle: 25±5°(the angle can be adjusted according to customer requirements)
Product features: highlight efficiency, anti-high temperature, anti-dead lamp, anti-static
Certification standards:SGS certificate in line with EU ROHS, EN60425, REACH standards
Packing: 500-1000pcs/bag inanti-static bag
Through-hole Cylindrical LEDs aresuitable for all applications requiring instruments, switches, iconbacklighting, and general status
indication. There are 3 types oftechnology-based LEDs lamps. The chips with GaP technology are for low tomoderate light output
requirements, and the ones with AllnGaP and InGaNtechnologies are for high brightness light output.
Through-hole Cylindrical LEDs areoffered in a variety of packages such as 3mm, 4mm, 5mm 8mm 10mm, withintegrated built-in resistor or low current options, and color choices includegreen, red, yellow, white, blue and orange.
These devices are molded from advancedoptical grade epoxy, which provide superior high temperature performance andexcellent moisture
resistance. Diffused, color transparent and optical designare balanced to yield superior light output. Several intensity choices areavailable
in each color for increasing design flexibility.
